Crystal Products

Available categories:
Aker Technology quartz crystal frequency control products

XTAL • SMD • Seam Seal Package

OutlineModelDimension (mm)Frequency Range (MHz)Tolerance Options (ppm)Stability Options (ppm)Operating Temp Range OptionsDistributor InventorySpecification
1210 X'talC121.2x1.0x.3532.000 - 80.000±10 ~ ±30±15
±30
±50		−20~+70℃
−40~+85℃
−40~+105℃
−40~+125℃		<i aria-hidden="true" class="fas fa-search"></i> Inventory<i aria-hidden="true" class="fas fa-file-pdf"></i> Download
C1EC161.6x1.2x0.424.000 ~ 60.000±10 ~ ±30±10
±15
±30
±50		−20~+70℃
−40~+85℃
−40~+105℃
−40~+125℃		<i aria-hidden="true" class="fas fa-search"></i> Inventory<i aria-hidden="true" class="fas fa-file-pdf"></i> Download
C1EC1E2.0x1.6x0.516.000 ~ 96.000±10 ~ ±30±10
±15
±30
±50		−20~+70℃
−40~+85℃
−40~+105℃
−40~+125℃		<i aria-hidden="true" class="fas fa-search"></i> Inventory<i aria-hidden="true" class="fas fa-file-pdf"></i> Download
C2EC2E2.5x2.0x0.6512.000 ~ 133.000±10 ~ ±30±10
±15
±30
±50		−20~+70℃
−40~+85℃
−40~+105℃
−40~+125℃		<i aria-hidden="true" class="fas fa-search"></i> Inventory<i aria-hidden="true" class="fas fa-file-pdf"></i> Download
C3EC3E3.2x2.5x0.758.000 ~ 156.250±10 ~ ±30±10
±15
±30
±50		−20~+70℃
−40~+85℃
−40~+105℃
−40~+125℃		<i aria-hidden="true" class="fas fa-search"></i> Inventory<i aria-hidden="true" class="fas fa-file-pdf"></i> Download
C4SC4S4.0x2.5x0.812.000 ~ 52.000±10 ~ ±30±10
±15
±30
±50		−20~+70℃
−40~+85℃
−40~+105℃
−40~+125℃		<i aria-hidden="true" class="fas fa-search"></i> Inventory<i aria-hidden="true" class="fas fa-file-pdf"></i> Download
C5SC5S5.0x3.2x1.08.000 ~ 133.000±10 ~ ±30±10
±15
±30
±50		−20~+70℃
−40~+85℃
−40~+105℃
−40~+125℃		<i aria-hidden="true" class="fas fa-search"></i> Inventory<i aria-hidden="true" class="fas fa-file-pdf"></i> Download
C6S C6S6.0x3.5x1.18.000 ~ 133.000±10 ~ ±30±10
±15
±30
±50		−20~+70℃
−40~+85℃
−40~+105℃
−40~+125℃		<i aria-hidden="true" class="fas fa-search"></i> Inventory<i aria-hidden="true" class="fas fa-file-pdf"></i> Download

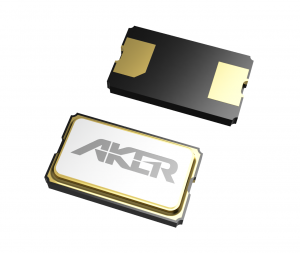

6035 X'tal 2PADC6SA6.0x3.5x1.18.000 ~ 133.000±10 ~ ±30±10
±15
±30
±50		−20~+70℃
−40~+85℃
−40~+105℃
−40~+125℃		<i aria-hidden="true" class="fas fa-search"></i> Inventory<i aria-hidden="true" class="fas fa-file-pdf"></i> Download
C7SC7S7.0x5.0x1.16.000 ~ 133.000±10 ~ ±30±10
±15
±30
±50		−20~+70℃
−40~+85℃
−40~+105℃
−40~+125℃		<i aria-hidden="true" class="fas fa-search"></i> Inventory<i aria-hidden="true" class="fas fa-file-pdf"></i> Download

XTAL • SMD • 32.768Khz

OutlineModelDimension (mm)Frequency Range (KHz)Tolerance Options (ppm)Temperature Coefficient
(PPM/℃²)		Operating Temp Range OptionsDistributor InventorySpecification

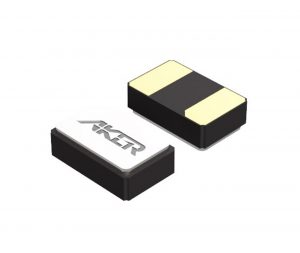

CTS1CTS11.6x1.0x0.532.768±20 −0.035 Typ-40~+85℃<i aria-hidden="true" class="fas fa-search"></i> Inventory<i aria-hidden="true" class="fas fa-file-pdf"></i> Download
CTS2CTS22.0x1.2x0.632.768±20 −0.035 Typ-40~+85℃<i aria-hidden="true" class="fas fa-search"></i> Inventory<i aria-hidden="true" class="fas fa-file-pdf"></i> Download
CTS3CTS33.2x1.5x0.9032.768±20 −0.035 Typ-40~+85℃
-40~+105℃
-40~+125℃		<i aria-hidden="true" class="fas fa-search"></i> Inventory<i aria-hidden="true" class="fas fa-file-pdf"></i> Download
CTP3-imgCTP38.7x3.7x2.5032.768±20 −0.035 Typ-40~+85℃<i aria-hidden="true" class="fas fa-search"></i> Inventory<i aria-hidden="true" class="fas fa-file-pdf"></i> Download

XTAL • Metal Can Package

OutlineModelDimension (mm)Frequency Range (MHz)Tolerance Options (ppm)Stability Options (ppm)Operating Temp Range OptionsDistributor InventorySpecification
CA4-imgCA412.7x4.5x4.83.200 ~ 75.000Mhz±10
±10
±10
±10		±15
±20
±30
±50		-20~+70℃
-40~+85℃
-40~+105℃
-40~+125℃		<i aria-hidden="true" class="fas fa-search"></i> Inventory<i aria-hidden="true" class="fas fa-file-pdf"></i> Download
CAA-imgCAA11.4x4.5x3.83.200 ~ 75.000Mhz±10
±10
±10
±10		±15
±20
±30
±50		-20~+70℃
-40~+85℃
-40~+105℃
-40~+125℃		<i aria-hidden="true" class="fas fa-search"></i> Inventory<i aria-hidden="true" class="fas fa-file-pdf"></i> Download
CA-imgCA11.5x5.0x3.73.200 ~ 75.000Mhz±10
±10
±10
±10		±15
±20
±30
±50		-20~+70℃
-40~+85℃
-40~+105℃
-40~+125℃		<i aria-hidden="true" class="fas fa-search"></i> Inventory<i aria-hidden="true" class="fas fa-file-pdf"></i> Download
CT26-imgCT262.0x2.0x6.032.768Khz±20-40~+85℃<i aria-hidden="true" class="fas fa-search"></i> Inventory<i aria-hidden="true" class="fas fa-file-pdf"></i> Download
Download Product Shortform
Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2008 (the “RoHS Regulations”). These Regulations implement EU Directive 2002/95 which bans the placing on the EU market of new electrical and electronic equipment containing more than agreed levels of lead, cadmium, mercury, hexavalent chromium, polybrominated biphenyl (PBB) and polybrominated diphenyl ether (PBDE) flame retardants.
